What the Heck is a Relation? From Tables to Cartesian Products to Logic



Awww...


I have given several talks and courses on Apache Hive and Pig and other new-ish ‘Big Data’ languages built upon Hadoop and  MapReduce.   These technologies implement an alternate approach to relational from SQL while still retaining the character that makes them DSLs within the domain of relations/tables.  In the case of Hive, the syntax is nearly the same as SQL.  In the case of Pig, the syntax has inspired much confusion, and
not enough love.  In both cases, the semantics are nearly the same with SQL.


During these talks, I have stressed several points about the nature of database technology, unix command lines, data serialization and higher-order functional programming that I will now try to boil down to a set of coherent posts. In attempting this, I hope to anchor these themes around the unity of a mathematical concept, the relation.  Ideally this (and following) posts will be both a comment on the mathematical underpinnings that have driven multiple multi-billion dollar industries (the 70’s relational boom, and the current Big Data fervor), and on the social/psychological/marketing forces that drive us to differentiate technologies from one another.


But to start this, we need to understand the foundational notion of the relation.

What the heck is a Relation?

   Attempt 1:   A relation is a subset of a cartesian product

Let us stipulate that while this answer might be sufficient and accurate, it suffers from an explanatory paucity.  Ok.  So now what?


  Attempt 2:  A relation is a table.
Yes.  This is correct too.  It provides an alternate explanation and one that everyone who has ever worked in the IT field should be familiar with, ad nauseum.  But how can this be the same as the first definition, that “a relation is a subset of a cartesian product”?  Actually, what the heck is a “cartesian product”, and what does this have to do with a table again?


We are going to need to spend some time reconciling these two different manifestations.  We will probably need to learn some new terminology, like set, domain, and cartesian product. But before we do that, let’s try a couple more explanations.


 Attempt 3:  A relation is a generalization of a function.
This too, provides us a concise answer, and is yet another explanation that we will need to reconcile.  Very mathematical.  Very true.  But dry, and seemingly unrelated.  (For what it’s worth, the grey arrow is the famous vertical line test).


  Attempt 4:  A relation is a property that assigns truth values to k-tuples of individuals
I’m afraid that if you found Attempt 1 and 3 off putting, this one will bumfuzzle you with its terseness.  It has something to do with another term that you might have heard: a predicate, which is a function that assigns truth-values.


Are all these things the same thing?  And what does this have to do with databases?  with Prolog/Datalog?  with  Hive, with Pig, with SQL?  with logic? with predicate calculus? with relational algebra?  with inference? with knowledge? with truth?


It seems we have have started with something simple, and gotten ourselves into quite a mess.  We claimed that we needed to reconcile these notions, (these manifestations), of this abstraction that we call a relation.  But in order to do this we will need to discuss things like sets, predicates, domains, ordering, functions, operators, tuples, individuals, facts, ground terms, truth-values etc.  We are entering the realm of meta-mathematics.

The Many Faces of the Relation

Let us list out the ways we have just described a relation:

  1. as an arbitrary subset of an arbitrary cartesian product
  2. as the generalization of a function
  3. as a table
  4. as a predicate function (‘a property that assigns to every k-tuple a truth-value’)

To reconcile all these notions we can do a pairwise match and compare each interpretation against the other.  Let’s start with the two interpretations that will give us the most traction for the terminology that they introduce:  a relation as a table versus a relation as an arbitrary cartesian product subset.

The Table Versus the Cartesian Subset

To get this started on the right foot we need to nail down the terms dimension, cartesian product, and domain.  This is not daunting, and most everyone intuitively knows what they are, they have just never used the terms in a different context or realized the connection.  Rather than belabor the point, we are going to show the following equalities:
It’s helpful to start with something simple, like plain old vanilla x and y values on a normal x-y plane.  This was the original Cartesian plane, as willed into existence by Descartes as he lay in bed and stared at a bug crawling up and down a wall.

In this case, our cartesian product is a multiplication of two dimensions x, and y.  If we assume that x is an integer, then we are saying its domain is an integer.  If we assume that y is an integer, then we are saying its domain is an integer.  Together, these two domain multiplied give us the cartesian plane of (x,y).  An individual on this plane is also called a tuple, or a point -- all three words are the same.


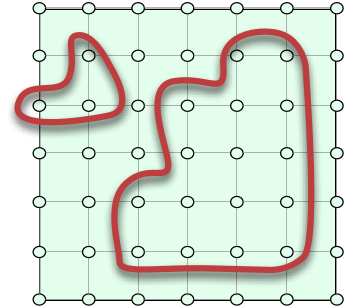

As we see above, we have selected an arbitrary subset of this cartesian product.  This subset has three individual/tuples/points:  {(0,4),  (1,4),  (1,5)}.  We could list these point out in a table if we wanted:

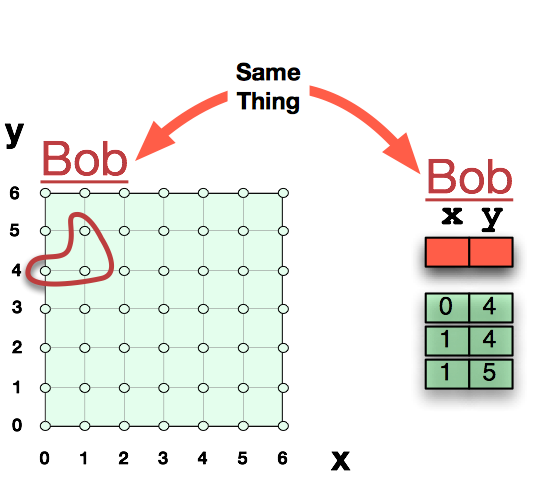

and just like that we have shown the equivalence between a table and a subset.  We see that a row is the individual, or the tuple, or the point.  They are the same.  We see that a column is a dimension.  We see that the column’s type is the same thing as a domain.

Let’s do one more thing.  Let’s give the relation a name.  Let’s call it “Bob”.  Finally, we have a formal relation as described by Codd.

Abstracting from Numbers

While Descartes thought about numbers, nothing prevents us from using the idea of dimensions in a non-numeric way.  We can make our dimension anything we want.  First off, rather than infinite numbers, we can have finite colours, or finite vegetables.

In the above diagram, we see a green rectangle that represents the entire universe of possible coloured vegetables if and only if we assume that there are only 4 colours {red,green,yellow,blue} and 3 vegetables {peppers,berries,avocado}.  By multiplying these out, we see that the entire universe of individuals possible (called a domain of discourse) is 12.  This is a finite cartesian product.  Nevertheless, we can take any arbitrary subset of this cartesian product, name it, and we have ourselves a relation.
Here we can see that we have selected a subset of five tuples/individuals/points,  and simultaneously shown this subset as a listing in a table.  We have named this relation TrueFood, presumably under the assumption that these particular individuals represent a listing of those things that are actual foods.

Moving to Higher Dimensions

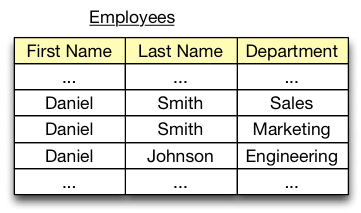

Finally, let us consider the classic table example, the Employee table, in which the FirstName, LastName, and Department may capture a listing of everyone in a company.  If we draw an analogy with spatial dimensions, then we can imagine last names running across the X-coordinate, first names running on the Y-coordinate and departments running on the Z-coordinate.
As shown above, this is merely a spatial representation of three different dimensions.  There is no inherent ordering, much like the example with veggies and colouring.  Nevertheless, this is absolutely a valid visual metaphor.   The entire space of possible cartesian products would range across individuals of 3-tuples.

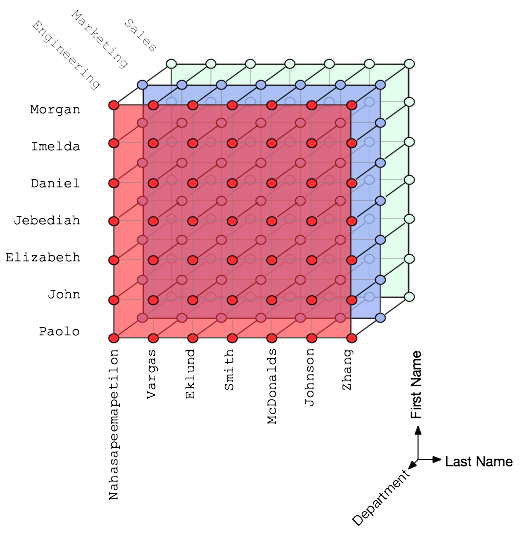

Just to make things simple, imagine a universe in which there were only 7 first names, 7 last names, and 3 departments.  In this finite 3-dimensional space, there are 63 possible individuals/points/tuples. Now imagine an arbitrary subset of this universe of individuals.
We can name this subset Employees, and we have a relation that represents our listing of all the people in our universe who we believe to be employees within our company.  It is this final point that provides us a hint on how we can reconcile our metaphor further, by drawing out the analogy to statements of facts.  This allows us to see our table not only as a subset of the entire universe of people, but as our collected knowledge about who is an employee and who is not (* we will return to this when we examine our last statement that a “relation is a property that assigns to every k-tuple a truth-value”).



We are tantalizingly close to seeing how relations may be manifested within the world of logic -- mainly in understanding that almost all logical systems start with statements of fact -- “Socrates is a man”.  But before we continue down that path, let’s talk about our understanding of relations as generalizations of a function.

Cartesian Subsets Versus Relation-is-a-generalization-of-a-Function

Now that we understand how a relation may be viewed as an arbitrary subset in cartesian space, it makes sense to push through and understand the statement “a relation is the generalization of a function.”  This particular statement can be seen visually when we see that a function is itself a subset of cartesian space.



Above we see the classic example of a numeric function in cartesian space.  Our function squares the input, and we may say that our function maps values of x to values of y.  Clearly we have a subset in the thick black line that visually represents all the tuples/rows/individuals that belong to this 2-dimensional cartesian space.   This function is a relation.  All functions are subsets of cartesian products, and therefore all functions are relations

But not all relations are functions!  Clearly, functions are subsets that meet a particular criteria.

We used the term map because that is the standard nomenclature that is associated with the set-theoretic description of functions.  Intensional or extensional debates flourish around the true nature of what a function is, but it is probably best not to get too religious about it at this point. The history of the notion of a function is a fascinating read.

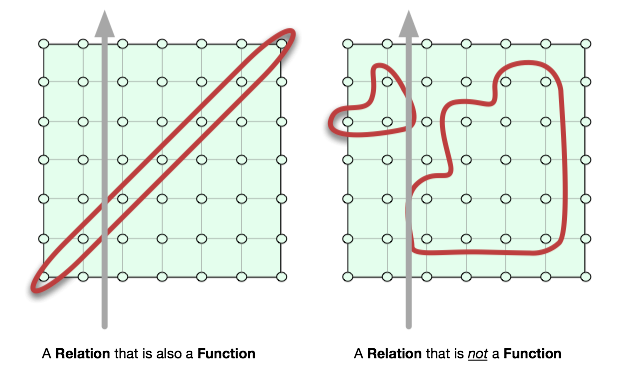

Most people who remember their high school algebra remember the statement that a function passes a “vertical line test” in demanding that an input value (a domain) be mapped on only one output value (the range).  This is the simple explanation of the criteria that separates the nature of a function as a subset from an arbitrary subset.  The vertical line test is clearly only applicable for two-dimensional visual representations -- more generally, one might say that at least one of the dimensions represents an output or range, and that the cardinality of its projection equals the cardinality prior to projection.

We could equally have said that the function y=x2 relates the values of x and y.  This is absolutely correct too.  However, when we use the word maps we are adding the further constraint of the vertical line test.

Just to provide one more interesting explanation on how relations are generalization of functions.  Let us compare a relational programming language, versus a functional programming language.  Now, if you saw the phrase relational programming language and immediately thought SQL, then this is not quite what we mean.  Instead, we are talking about general purpose programming languages alternatively known as logic programming languages.    Let us compare how the relational/logic programming language Prolog would syntactically represent the addition operation from how a functional language would represent the addition operation.

The following lines of codes are valid snippets of Prolog code:
    plus(6,2,4).   % Here we are saying that 6 is related to 2
                   % and 4 by being the result of adding 2 and 4.
                   % but just as equally, we can say that 4 is related
                   % to 6 and 2 by being that which added to 2
                   % gives 6.
    plus(200,199,1).
    plus(X,2,4)?   % Under this query, we will get X=6
    plus(6,Y,4)?   % Here we will get Y=2

And the following line of psuedo-code is valid in any language that has functions (no need to demand the use of a full blown functional language like Haskell):

    x = plus(199,1);  // x will be 200 if we implemented this correctly :)

The difference in them is interesting.

While the relational language has the word plus taking 3 arguments and has no output variable, the function-like languages use 2 arguments and assigns/binds the output to a variable.  The difference is one of generality.  Functions promote one of the dimensions to an output, (they map all inputs/domains to an output/range).  But relations assume no special direction:  6 is related to 2 and 4 by being the result of adding 2 and 4, but just as trutfully, we can say that 4 is related to 6 and 2 by being that which added to 2 gives 6.

Finally:  Comparing A Relation as a Subset versus A Relation as a Predicate Function, or A Relation is a Property that Assigns to each K-Tuple a Truth Value

Let’s keep going.

This reconciliation is very interesting, and one that confused me for a long time.  Here we have gone to the trouble of saying that a relation is a generalization of a function, and now we are going to turn around and call it a function.  This seemingly contradictory statement is not really contradictory, but is a result of the fact that we are at the lowest level.  Things like sets, and relations and functions are the fundamental building blocks of logic, meta-mathematics and mathematics.  When you are this low down then we cannot help but re-use our low-level notions to describe things in terms of another.  So let’s explore this weirdness.

Here are the two equivalent statements:
A relation is a property that assigns to every k-tuple a truth-value
A relation is a predicate function


So, let’s first define a predicate function:  a predicate function is a function that gives a truth-value about an element.  Another way of saying this is that a predicate is a function that returns an element of the set { true, false }.

The phrase “k-tuple” is mathy for an individual or element or point or row with k-dimensions.  “Truth-value” is mathy for something that is either true or false.  “Predicate Function” is mathy for a function that returns a boolean.


We are still not there.  How can a relation, which we know is a subset of a cartesian product, also be a predicate function?  Well, look at the graphic above, where we show the Employee table/relation/subset.  As you can see,  the entire universe of possible people is a larger space of individuals.  However, only the individuals/tuples/rows/elements of our subset are what we call employees.  So, why not make our predicate function something simple like:  “Is the individual X an element of the subset Employees?”.

And just like that, we have unified the notions.  Our function signature looks something like this:

    EMPLOYEE(X) ->  BOOLEAN
The implementation of the function would merely check to see if X was an element of the subset .  This is called an indicator function.  So if we were to call our function on a couple of possible  individuals/tuples/rows/elements  we would get

   EMPLOYEE(Daniel Smith, Marketing)  →  TRUE
   EMPLOYEE(Jebediah Vargas, Marketing)  →  FALSE

This is equivalent to asking, is there a row in the table with this value?  If there is, then the person is an employee.  If there’s not then the person is not an employee.


Tangent:  This last point is a fundamental one that has different interpretations.  In the Closed World Assumption, a database is complete and every tuple represents a fact.  If a fact is not present, then it is false.  In the Open World Assumption, a database is a collection of known facts, and the lack of a fact is not equivalent to saying that the predicate is false.  See Reiter.

This is a fascinating place where philosophy meets the technical. For a concrete example of this, look to the Semantic Web effort.

The Semantic Web is a system of binary relations manifested in something called RDF triples.  An RDF triple is nothing more than a single floating tuple of a binary relation, and the entire internet is a database of disperse binary tuples, representing currently-known facts.  The philosophy of the Semantic Web is very much around the Open World Assumption.


SUPER IMPORTANT Tangent:  Given everything we’ve said about these different manifestations, what does having a NULL value for one of the dimensions imply?   Can you see why allowing NULLS in a database has historically really bothered a lot of people?


We can easily add a null to the table interpretation, as shown below:

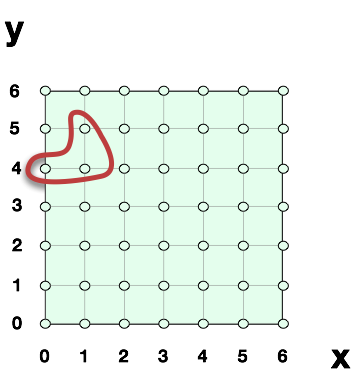

but what are the possible interpretations when we try to think of this table under the cartesian subset interpretation?  How do we represent the missing dimension? As a line? As a possible line?

What about the predicate function interpretation, where the function needs to return either TRUE of FALSE?  Are all green veggies true food? Is there one green veggie that is a true food and we just don't know which one it is? What happens if someone asks "TRUE_FOOD( "green avocado" )?" Should we return TRUE or FALSE? If we don't, and return something else, we have exited standard logic with Boolean values and entered more esoteric realms.




Conclusion

Tree of Life
The overriding theme for this little post, was that the notion of a relation as an abstraction provides a unifying means of thinking about data.  I have never claimed that the implementation details are irrelevant.  There is a reason that OLAP/MPP databases are separate products from OLTP databases -- they materialize and store their relations differently to account for different access patterns. There is a reason that graph databases are a separate product (index-free adjacency inverts the primacy in typical relational stores of the relation over the individual to be the individual over the relation).  There is a reason why Prolog is a language for storing a small number of mostly-static facts of atomic tuples, while a database is a technology for storing a huge number of mostly-dynamic facts.  There is a reason why database management systems exist in the first place (curated schema with a priori schema knowledge provides the management system up-front knowledge on types and indexes that make relational queries real-time).

I have also not claimed that any of these ideas are new.  It is always useful, to go back and read the original source material, especially Codd’s 1972 paper where he proved that relational algebra and relational calculus (itself a modified version of predicate calculus -- a fundamental logic) were one and the same.  Go read the papers of Gallaire, Minker, Reiter, Nicolas, Kowalski, whose 30 year old premises recognize the logic programming and databases are the same and propose the notion of deductive databases. (* there are dozens of source material papers I should eventually collect together into a bibliography, if I were so inclined).


In the following post:  “The Occultation of Relations and Logic” we will drive home the point that relations are abstractions. Too often, people equate relations with SQL, or (worse) with database management systems (Oracle, MySQL). We will reveal the opposite, and show how relations may be used to think about the world, and how even things like shadows and log files may be interpreted as facts and tables and cartesian products, i.e. as relations.

(thanks to Dean Wampler, and Bhavana C for feedback)
